Updated Jul 04, 2024 Verified Pass AZ-204 Exam in First Attempt Guaranteed
Free AZ-204 Sample Questions and 100% Cover Real Exam Questions (Updated 385 Questions)
Who should take the AZ-204: Developing Solutions for Microsoft Azure Exam
The AZ-204 Exam certification is an internationally-recognized certification which help to have validation for cloud developers who participate in all phases of development from requirements definition and design, to development and deployment, and maintenance which also includes implementing solutions for clients, Cloud Administrators, and Cloud DBAs. Candidates should be proficient in Azure SDKs, data storage options, data connections, APIs, app authentication and authorization, compute and container deployment, debugging, performance tuning, and monitoring. Candidates must have 1-2 years professional development experience and experience with Microsoft Azure. Candidate should have the ability to write programs in Azure Supported Languages.
To take the AZ-204 exam, candidates should have experience developing solutions using C#, Node.js, Azure CLI, Azure PowerShell, and Azure Functions. Candidates should also have a strong understanding of Azure services, including Azure App Service, Azure Functions, Azure Storage, and Azure Cosmos DB. AZ-204 exam is intended for developers with at least one year of experience developing scalable solutions through all phases of software development and deployment. Passing the AZ-204 exam will earn the candidate the Microsoft Certified: Azure Developer Associate certification. Developing Solutions for Microsoft Azure certification demonstrates to employers that the candidate has the skills and knowledge to develop applications using Microsoft Azure.
NEW QUESTION # 212
You develop an ASP.NET Core MVC application. You configure the application to track webpages and custom events.
You need to identify trends in application usage.
Which Azure Application Insights Usage Analysis features should you use? To answer, drag the appropriate features to the correct requirements. Each feature may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Box1: Users
Box 2: Impact
One way to think of Impact is as the ultimate tool for settling arguments with someone on your team about how slowness in some aspect of your site is affecting whether users stick around. While users may tolerate a certain amount of slowness, Impact gives you insight into how best to balance optimization and performance to maximize user conversion.
Box 3: Retention
The retention feature in Azure Application Insights helps you analyze how many users return to your app, and how often they perform particular tasks or achieve goals. For example, if you run a game site, you could compare the numbers of users who return to the site after losing a game with the number who return after winning. This knowledge can help you improve both your user experience and your business strategy.
Box 4: User flows
The User Flows tool visualizes how users navigate between the pages and features of your site. It's great for answering questions like:
How do users navigate away from a page on your site?
What do users click on a page on your site?
Where are the places that users churn most from your site?
Are there places where users repeat the same action over and over?
NEW QUESTION # 213
You plan to create a Docker image that runs as ASP.NET Core application named ContosoApp. You have a setup script named setupScript.ps1 and a series of application files including ContosoApp.dll.
You need to create a Dockerfile document that meets the following requirements:
*Call setupScript.ps1 when the container is built.
*Run ContosoApp.dll when the container starts.
The Docker document must be created in the same folder where ContosoApp.dll and setupScript.ps1 are stored.
Which four commands should you use to develop the solution? To answer, move the appropriate commands from the list of commands to the answer area and arrange them in the correct order.
Answer:
Explanation:
Explanation
Step 1: WORKDIR /apps/ContosoApp
Step 2: COPY ./-
The Docker document must be created in the same folder where ContosoApp.dll and setupScript.ps1 are stored.
Step 3: EXPOSE ./ContosApp/ /app/ContosoApp
Step 4: CMD powershell ./setupScript.ps1
ENTRYPOINT ["dotnet", "ContosoApp.dll"]
You need to create a Dockerfile document that meets the following requirements:
* Call setupScript.ps1 when the container is built.
* Run ContosoApp.dll when the container starts.
References:
https://docs.microsoft.com/en-us/azure/app-service/containers/tutorial-custom-docker-image
NEW QUESTION # 214
You are debugging an application that is running on Azure Kubernetes cluster named cluster1. The cluster uses Azure Monitor for containers to monitor the cluster.
The application has sticky sessions enabled on the ingress controller.
Some customers report a large number of errors in the application over the last 24 hours.
You need to determine on which virtual machines (VMs) the errors are occurring.
How should you complete the Azure Monitor query? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Box 1: ago(1d)
Box 2: distinct containerID
Box 3: where ContainerID in (ContainerIDs)
Box 4: summarize Count by Computer
Summarize: aggregate groups of rows
Use summarize to identify groups of records, according to one or more columns, and apply aggregations to them. The most common use of summarize is count, which returns the number of results in each group.
Reference:
https://docs.microsoft.com/en-us/azure/azure-monitor/log-query/get-started-queries
https://docs.microsoft.com/en-us/azure/azure-monitor/log-query/query-optimization
NEW QUESTION # 215
You are developing an Azure Function app.
The app must meet the following requirements:
* Enable developers to write the functions by using the Rust language.
* Declaratively connect to an Azure Blob Storage account.
You need to implement the app.
Which Azure Function app features should you use? To answer, drag the appropriate features to the correct requirements. Each feature may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Graphical user interface, application Description automatically generated

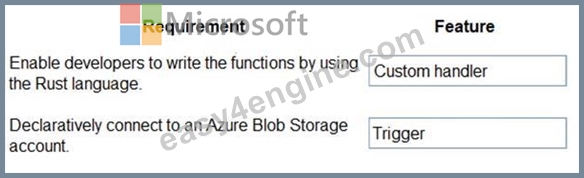

Box 1: Custom handler
Custom handlers can be used to create functions in any language or runtime by running an HTTP server process, for example Go or Rust.
Box 2: Trigger
Functions are invoked by a trigger and can have exactly one. In addition to invoking the function, certain triggers also serve as bindings. You may also define multiple bindings in addition to the trigger. Bindings provide a declarative way to connect data to your code.
Reference:
https://docs.microsoft.com/en-us/azure/azure-functions/create-first-function-vs-code-other
https://docs.microsoft.com/en-us/dotnet/architecture/serverless/azure-functions
NEW QUESTION # 216
You develop and deploy a web app to Azure App service. The web app allows users to authenticate by using social identity providers through the Azure B2C service. All user profile information is stored in Azure B2C.
You must update the web app to display common user properties from Azure B2C to include the following information:
* Email address
* Job title
* First name
* Last name
* Office Location
You need to implement the user properties in the web app.
Answer:
Explanation:
Explanation
NEW QUESTION # 217
A company is developing a mobile app for field service employees using Azure App Service Mobile Apps as the backend.
The company's network connectivity varies throughout the day. The solution must support offline use and synchronize changes in the background when the app is online app.
You need to implement the solution.
How should you complete the code segment? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Box 1: var todoTable = client GetSyncTable<TodoItem>()
To setup offline access, when connecting to your mobile service, use the method GetSyncTable instead of GetTable (example):
IMobileServiceSyncTable todoTable = App.MobileService.GetSyncTable(); / Box 2: await todoTable.PullAsync("allTodoItems",todo.Table.CreateQuery()); Your app should now use IMobileServiceSyncTable (instead of IMobileServiceTable) for CRUD operations.
This will save changes to the local database and also keep a log of the changes. When the app is ready to synchronize its changes with the Mobile Service, use the methods PushAsync and PullAsync (example):
await App.MobileService.SyncContext.PushAsync();
await todoTable.PullAsync();
References:
https://azure.microsoft.com/es-es/blog/offline-sync-for-mobile-services/
NEW QUESTION # 218
You are maintaining an existing application that uses an Azure Blob GPv1 Premium storage account. Data older than three months is rarely used.
Data newer than three months must be available immediately. Data older than a year must be saved but does not need to be available immediately.
You need to configure the account to support a lifecycle management rule that moves blob data to archive storage for data not modified in the last year.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Answer:
Explanation:
1 - Upgrade the storage account to GPv2
2 - Copy the data to be archived to a Standard GPv2 storage account and then delete the data from the original storage account
3 - Change the storage account access tier from hot to cool
Reference:
https://docs.microsoft.com/en-us/azure/storage/blobs/storage-blob-storage-tiers
NEW QUESTION # 219
You are developing an Azure solution to collect inventory data from thousands of stores located around the world. Each store location will send the inventory data hourly to an Azure Blob storage account for processing.
The solution must meet the following requirements:
Begin processing when data is saved to Azure Blob storage.
Filter data based on store location information.
Trigger an Azure Logic App to process the data for output to Azure Cosmos DB.
Enable high availability and geographic distribution.
Allow 24-hours for retries.
Implement an exponential back off data processing.
You need to configure the solution.
What should you implement? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Graphical user interface, application Description automatically generated
Box 1: Azure Event Grid
Blob storage events are pushed using Azure Event Grid to subscribers such as Azure Functions, Azure Logic Apps, or even to your own http listener. Event Grid provides reliable event delivery to your applications through rich retry policies and dead-lettering.
Box 2: Azure Logic App
Event Grid uses event subscriptions to route event messages to subscribers. This image illustrates the relationship between event publishers, event subscriptions, and event handlers.
Diagram Description automatically generated
Box 3: Azure Service Bus
The Event Grid service doesn't store events. Instead, events are stored in the Event Handlers, including ServiceBus, EventHubs, Storage Queue, WebHook endpoint, or many other supported Azure Services.
Reference:
https://docs.microsoft.com/en-us/azure/storage/blobs/storage-blob-event-overview
https://docs.microsoft.com/en-us/java/api/overview/azure/messaging-eventgrid-readme
NEW QUESTION # 220
You are preparing to deploy a medical records application to an Azure virtual machine (VM). The application will be deployed by using a VHD produced by an on-premises build server.
You need to ensure that both the application and related data are encrypted during and after deployment to Azure.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Answer:
Explanation:
1 - Encrypt the on-premises VHD by using BitLocker without a TPM. Upload the VM to Azure Storage
2 - Run the Azure PowerShell command Set-AzureRMVMOSDisk
3 - Run the Azure PowerShell command Set-AzureRmVMDiskEncryptionExtension
NEW QUESTION # 221
You need to ensure that PolicyLib requirements are met.
How should you complete the code segment? To answer, drag the appropriate code segments to the correct locations. Each code segment may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Scenario: You have a shared library named PolicyLib that contains functionality common to all ASP.NET Core web services and applications. The PolicyLib library must:
* Exclude non-user actions from Application Insights telemetry.
* Provide methods that allow a web service to scale itself.
* Ensure that scaling actions do not disrupt application usage.
Box 1: ITelemetryInitializer
Use telemetry initializers to define global properties that are sent with all telemetry; and to override selected behavior of the standard telemetry modules.
Box 2: Initialize
Box 3: Telemetry.Context
Box 4: ((EventTelemetry)telemetry).Properties["EventID"]
Reference:
https://docs.microsoft.com/en-us/azure/azure-monitor/app/api-filtering-sampling
Topic 5, Litware Inc
Case study
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. When you are ready to answer a question, click the Question button to return to the question.
Background
You are a developer for Litware Inc., a SaaS company that provides a solution for managing employee expenses. The solution consists of an ASP.NET Core Web API project that is deployed as an Azure Web App.
Overall architecture
Employees upload receipts for the system to process. When processing is complete, the employee receives a summary report email that details the processing results. Employees then use a web application to manage their receipts and perform any additional tasks needed for reimbursement.
Receipt processing
Employees may upload receipts in two ways:
* Uploading using an Azure Files mounted folder
* Uploading using the web application
Data Storage
Receipt and employee information is stored in an Azure SQL database.
Documentation
Employees are provided with a getting started document when they first use the solution. The documentation includes details on supported operating systems for Azure File upload, and instructions on how to configure the mounted folder.
Solution details
Users table
Web Application
You enable MSI for the Web App and configure the Web App to use the security principal name WebAppIdentity.
Processing
Processing is performed by an Azure Function that uses version 2 of the Azure Function runtime. Once processing is completed, results are stored in Azure Blob Storage and an Azure SQL database. Then, an email summary is sent to the user with a link to the processing report. The link to the report must remain valid if the email is forwarded to another user.
Logging
Azure Application Insights is used for telemetry and logging in both the processor and the web application.
The processor also has TraceWriter logging enabled. Application Insights must always contain all log messages.
Requirements
Receipt processing
Concurrent processing of a receipt must be prevented.
Disaster recovery
Regional outage must not impact application availability. All DR operations must not be dependent on application running and must ensure that data in the DR region is up to date.
Security
* User's SecurityPin must be stored in such a way that access to the database does not allow the viewing of SecurityPins. The web application is the only system that should have access to SecurityPins.
* All certificates and secrets used to secure data must be stored in Azure Key Vault.
* You must adhere to the principle of least privilege and provide privileges which are essential to perform the intended function.
* All access to Azure Storage and Azure SQL database must use the application's Managed Service Identity (MSI).
* Receipt data must always be encrypted at rest.
* All data must be protected in transit.
* User's expense account number must be visible only to logged in users. All other views of the expense account number should include only the last segment, with the remaining parts obscured.
* In the case of a security breach, access to all summary reports must be revoked without impacting other parts of the system.
Issues
Upload format issue
Employees occasionally report an issue with uploading a receipt using the web application. They report that when they upload a receipt using the Azure File Share, the receipt does not appear in their profile. When this occurs, they delete the file in the file share and use the web application, which returns a 500 Internal Server error page.
Capacity issue
During busy periods, employees report long delays between the time they upload the receipt and when it appears in the web application.
Log capacity issue
Developers report that the number of log messages in the trace output for the processor is too high, resulting in lost log messages.
Application code
Processing.cs
Database.cs
ReceiptUploader.cs
ConfigureSSE.ps1
NEW QUESTION # 222
A company is developing a Node.js web app. The web app code is hosted in a GitHub repository located at
https://github.com/TailSpinToys/weapp.
The web app must be reviewed before it is moved to production. You must deploy the initial code release to a deployment slot named review.
You need to create the web app and deploy the code.
How should you complete the commands? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
The New-AzResourceGroup cmdlet creates an Azure resource group.
The New-AzAppServicePlan cmdlet creates an Azure App Service plan in a given location The New-AzWebApp cmdlet creates an Azure Web App in a given a resource group The New-AzWebAppSlot cmdlet creates an Azure Web App slot.
References:
https://docs.microsoft.com/en-us/powershell/module/az.resources/new-azresourcegroup?view=azps-2.3.2
https://docs.microsoft.com/en-us/powershell/module/az.websites/new-azappserviceplan?view=azps-2.3.2
https://docs.microsoft.com/en-us/powershell/module/az.websites/new-azwebapp?view=azps-2.3.2
https://docs.microsoft.com/en-us/powershell/module/az.websites/new-azwebappslot?view=azps-2.3.2
NEW QUESTION # 223
You are developing an ASP.NET Core web application. You plan to deploy the application to Azure Web App for Containers.
The application needs to store runtime diagnostic data that must be persisted across application restarts. You have the following code:
You need to configure the application settings so that diagnostic data is stored as required.
How should you configure the web app's settings? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Reference:
https://docs.microsoft.com/en-us/azure/app-service/containers/app-service-linux-faq
NEW QUESTION # 224
You need to configure Azure Cosmos DB.
Which settings should you use? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Graphical user interface, application, table Description automatically generated
Box 1: Strong
When the consistency level is set to strong, the staleness window is equivalent to zero, and the clients are guaranteed to read the latest committed value of the write operation.
Scenario: Changes to the Order data must reflect immediately across all partitions. All reads to the Order data must fetch the most recent writes.
Note: You can choose from five well-defined models on the consistency spectrum. From strongest to weakest, the models are: Strong, Bounded staleness, Session, Consistent prefix, Eventual Box 2: SQL Scenario: You identify the following requirements for data management and manipulation:
Order data is stored as nonrelational JSON and must be queried using Structured Query Language (SQL).
NEW QUESTION # 225
You have a web app named MainApp. You are developing a triggered App Service background task by using the WebJobs SDK. This task automatically invokes a function code whenever any new data is received in a queue.
You need to configure the services.
Which service should you use for each scenario? To answer, drag the appropriate services to the correct scenarios. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Reference:
https://code.msdn.microsoft.com/Processing-Service-Bus-84db27b4
NEW QUESTION # 226
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You are developing a medical records document management website. The website is used to store scanned copies of patient intake forms.
If the stored intake forms are downloaded from storage by a third party, the contents of the forms must not be compromised.
You need to store the intake forms according to the requirements.
Solution:
1. Create an Azure Cosmos DB database with Storage Service Encryption enabled.
2. Store the intake forms in the Azure Cosmos DB database.
Does the solution meet the goal?
- A. Yes
- B. No
Answer: B
Explanation:
Instead use an Azure Key vault and public key encryption. Store the encrypted from in Azure Storage Blob storage.
NEW QUESTION # 227
You plan to create a Docker image that runs as ASP.NET Core application named ContosoApp. You have a setup script named setupScript.ps1 and a series of application files including ContosoApp.dll.
You need to create a Dockerfile document that meets the following requirements:
*Call setupScript.ps1 when the container is built.
*Run ContosoApp.dll when the container starts.
The Docker document must be created in the same folder where ContosoApp.dll and setupScript.ps1 are stored.
Which four commands should you use to develop the solution? To answer, move the appropriate commands from the list of commands to the answer area and arrange them in the correct order.
Answer:
Explanation:
Explanation
Step 1: WORKDIR /apps/ContosoApp
Step 2: COPY ./-
The Docker document must be created in the same folder where ContosoApp.dll and setupScript.ps1 are stored.
Step 3: EXPOSE ./ContosApp/ /app/ContosoApp
Step 4: CMD powershell ./setupScript.ps1
ENTRYPOINT ["dotnet", "ContosoApp.dll"]
You need to create a Dockerfile document that meets the following requirements:
* Call setupScript.ps1 when the container is built.
* Run ContosoApp.dll when the container starts.
References:
https://docs.microsoft.com/en-us/azure/app-service/containers/tutorial-custom-docker-image
NEW QUESTION # 228
A company backs up all manufacturing data to Azure Blob Storage. Admins move blobs from hot storage to archive tier storage every month.
You must automatically move blocks to Archive tier after they have not been accessed for 180 days. The path for any item that is not archived must be placed in an existing queue. This operation must be performed automatically once a month. You set the value of TierAgeInDays to 180.
How should you configure the Logic App? To answer, drag the appropriate triggers or action blocks to the correct trigger or action slots. Each trigger or action block may be used once, more than once, or not at all.
You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Box 1: Recurrence
Box 2: Insert Entity
Box 3 (if true): Tier Blob
Box 4: (if false):
Leave blank.
References:
https://docs.microsoft.com/en-us/azure/logic-apps/logic-apps-perform-data-operations
NEW QUESTION # 229
You are developing an application that runs in several customer Azure Kubernetes Service clusters, Within each cluster, a pod runs that collects performance data to be analyzed later, a large amount of data is collected so saving latency must be minimized The performance data must be stored so that pod restarts do not impact the stored dat a. Write latency should be minimized.
You need to configure blob storage.

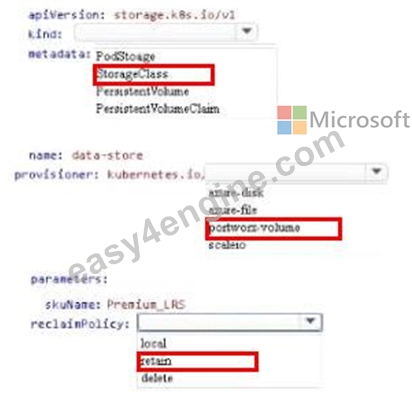

How should you complete the YAML configuration? To answer, select the appropriate options in the answer area.
Answer:
Explanation:
NEW QUESTION # 230
You are developing a project management service by using ASP.NET. The service hosts conversations, files, to-do lists, and a calendar that users can interact with at any time.
The application uses Azure Search for allowing users to search for keywords in the project data.
You need to implement code that creates the object which is used to create indexes in the Azure Search service.
Which two objects should you use? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
- A. SearchCredentials
- B. SearchlndexCIient
- C. SearchService
- D. SearchServiceClient
Answer: B,D
Explanation:
The various client libraries define classes like Index, Field, and Document, as well as operations like Indexes.Create and Documents.Search on the SearchServiceClient and SearchIndexClient classes.
Example:
The sample application we'll be exploring creates a new index named "hotels", populates it with a few documents, then executes some search queries. Here is the main program, showing the overall flow:
/ This sample shows how to delete, create, upload documents and query an index static void Main(string[] args)
{
IConfigurationBuilder builder = new ConfigurationBuilder().AddJsonFile("appsettings.json"); IConfigurationRoot configuration = builder.Build(); SearchServiceClient serviceClient = CreateSearchServiceClient(configuration); Console.WriteLine("{0}", "Deleting index...\n"); DeleteHotelsIndexIfExists(serviceClient); Console.WriteLine("{0}", "Creating index...\n"); CreateHotelsIndex(serviceClient); ISearchIndexClient indexClient = serviceClient.Indexes.GetClient("hotels");
https://docs.microsoft.com/en-us/azure/search/search-howto-dotnet-sdk
NEW QUESTION # 231
You need to add YAML markup at line CS17 to ensure that the ContentUploadService can access Azure Storage access keys.
How should you complete the YAML markup? To answer, drag the appropriate YAML segments to the correct locations. Each YAML segment may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Explanation
Box 1: volumeMounts
Example:
volumeMounts:
- mountPath: /mnt/secrets
name: secretvolume1
volumes:
- name: secretvolume1
secret:
mysecret1: TXkgZmlyc3Qgc2VjcmV0IEZPTwo=
Box 2: volumes
Box 3: secret
Reference:
https://docs.microsoft.com/en-us/azure/container-instances/container-instances-volume-secret
Topic 3, City Power & Light
Case study
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. When you are ready to answer a question, click the Question button to return to the question.
Background
City Power & Light company provides electrical infrastructure monitoring solutions for homes and businesses.
The company is migrating solutions to Azure.
Current environment
Architecture overview
The company has a public website located
at http://www.cpandl.com/. The site is a single-page web application that runs in Azure App Service on Linux.
The website uses files stored in Azure Storage and cached in Azure Content Delivery Network (CDN) to serve static content.
API Management and Azure Function App functions are used to process and store data in Azure Database for PostgreSQL. API Management is used to broker communications to the Azure Function app functions for Logic app integration. Logic apps are used to orchestrate the data processing while Service Bus and Event Grid handle messaging and events.
The solution uses Application Insights, Azure Monitor, and Azure Key Vault.
Architecture diagram
The company has several applications and services that support their business. The company plans to implement serverless computing where possible. The overall architecture is shown below.
User authentication
The following steps detail the user authentication process:
* The user selects Sign in in the website.
* The browser redirects the user to the Azure Active Directory (Azure AD) sign in page.
* The user signs in.
* Azure AD redirects the user's session back to the web application. The URL includes an access token.
* The web application calls an API and includes the access token in the authentication header. The application ID is sent as the audience ('aud') claim in the access token.
* The back-end API validates the access token.
Requirements
Corporate website
* Communications and content must be secured by using SSL.
* Communications must use HTTPS.
* Data must be replicated to a secondary region and three availability zones.
* Data storage costs must be minimized.
Azure Database for PostgreSQL
The database connection string is stored in Azure Key Vault with the following attributes:
* Azure Key Vault name: cpandlkeyvault
* Secret name: PostgreSQLConn
* Id: 80df3e46ffcd4f1cb187f79905e9a1e8
The connection information is updated frequently. The application must always use the latest information to connect to the database.
Azure Service Bus and Azure Event Grid
* Azure Event Grid must use Azure Service Bus for queue-based load leveling.
* Events in Azure Event Grid must be routed directly to Service Bus queues for use in buffering.
* Events from Azure Service Bus and other Azure services must continue to be routed to Azure Event Grid for processing.
Security
* All SSL certificates and credentials must be stored in Azure Key Vault.
* File access must restrict access by IP, protocol, and Azure AD rights.
* All user accounts and processes must receive only those privileges which are essential to perform their intended function.
Compliance
Auditing of the file updates and transfers must be enabled to comply with General Data Protection Regulation (GDPR). The file updates must be read-only, stored in the order in which they occurred, include only create, update, delete, and copy operations, and be retained for compliance reasons.
Issues
Corporate website
While testing the site, the following error message displays:
CryptographicException: The system cannot find the file specified.
Function app
You perform local testing for the RequestUserApproval function. The following error message displays:
'Timeout value of 00:10:00 exceeded by function: RequestUserApproval'
The same error message displays when you test the function in an Azure development environment when you run the following Kusto query:
FunctionAppLogs
| where FunctionName = = "RequestUserApproval"
Logic app
You test the Logic app in a development environment. The following error message displays:
'400 Bad Request'
Troubleshooting of the error shows an HttpTrigger action to call the RequestUserApproval function.
Code
Corporate website
Security.cs:
Function app
RequestUserApproval.cs:
NEW QUESTION # 232
......
Connect to & Consume Azure/3rd-Party Services: 25-30%
- Developing App Service Logic App: this objective requires that the learners have competence in developing Logic Apps; developing custom-connector for Logic Apps; developing custom-template for Logic Apps.
- Developing Message-based Solutions: this requires one’s skills in implementing solutions that utilize Azure Service Bus and Azure Queue Storage queues.
- Developing Event-Based Solutions: the individuals should have the capacity to implement the solutions that utilize Azure Event Grid, Azure Notification Hubs, and Azure Event Hub.
- Implementing API Management: this covers skills in creating APIM instances; configuring authentication for APIs; defining policies for APIs.
Download Real Microsoft AZ-204 Exam Dumps Test Engine Exam Questions: https://www.easy4engine.com/AZ-204-test-engine.html
Verified AZ-204 Dumps Q&As - AZ-204 Test Engine with Correct Answers: https://drive.google.com/open?id=1X6PMHTlX3qjDUBV_-dZI2QKCqPpH3thG
